Description



CN100 Coil Nailer: Unleash unmatched power and precision for all your woodworking projects, where durability meets comfort in every nail driven.

Note: Ships from overseas, delivered within 2 weeks.

Feel free to place your order by emailing us at quotes@jpfranklin.co.nz or call us at 0800456888 – we’d love to hear from you!

Features:

  • Most powerful in its class, capable of countersinking nails into hard oak pallet.

  • Constructed with a durable aluminum frame and cylinder cap.

  • Well balanced for use with a balancer.

  • Downwards directional exhaust to divert air away from the user.

  • Built-in silencer to minimize noise.

  • Equipped with a comfortable rubber grip for ease of use.

  • Large magazine capacity for additional nail storage.

Applications:

  • Assembly and repair of pallets, drums, and export wooden boxes.

  • Wooden fencing installation and repair.

  • Crating for transport or storage.

  • General construction tasks including siding, decking, and sheathing.

Product Details

Tool Specifications:

  • Weight:

Aluminum body: 5.35 kgs (11.66 lbs)

Magnesium body: 5.11 kgs (11.26 lbs)

  • Dimensions: 417mm x 156mm x 336mm (16-3/8″ x 6-1/8″ x 13-1/4″)

  • Load Capacity: 150-300 nails

  • Operating Pressure: 70-120 psi (5-8.3 bar)

Fasteners Applicable:

  • Length: 65mm-100mm

  • Shank Diameter: 2.5mm-3.33mm

  • Head Diameter: 6.5mm-7.5mm

  • Type: 15° Flat wire welded coil nails

CN100 Air Coil Nailer Overview

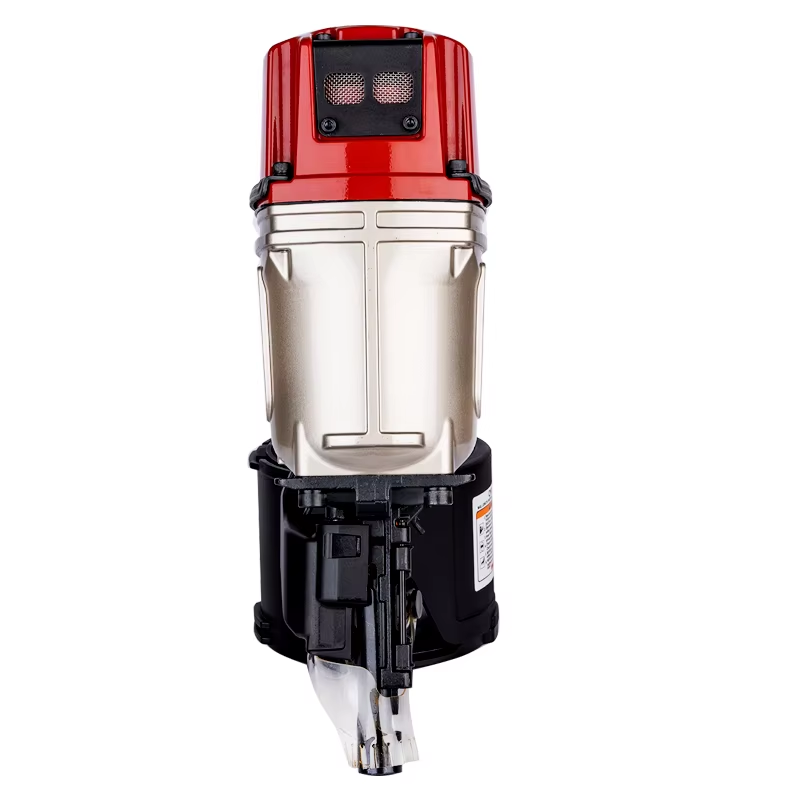

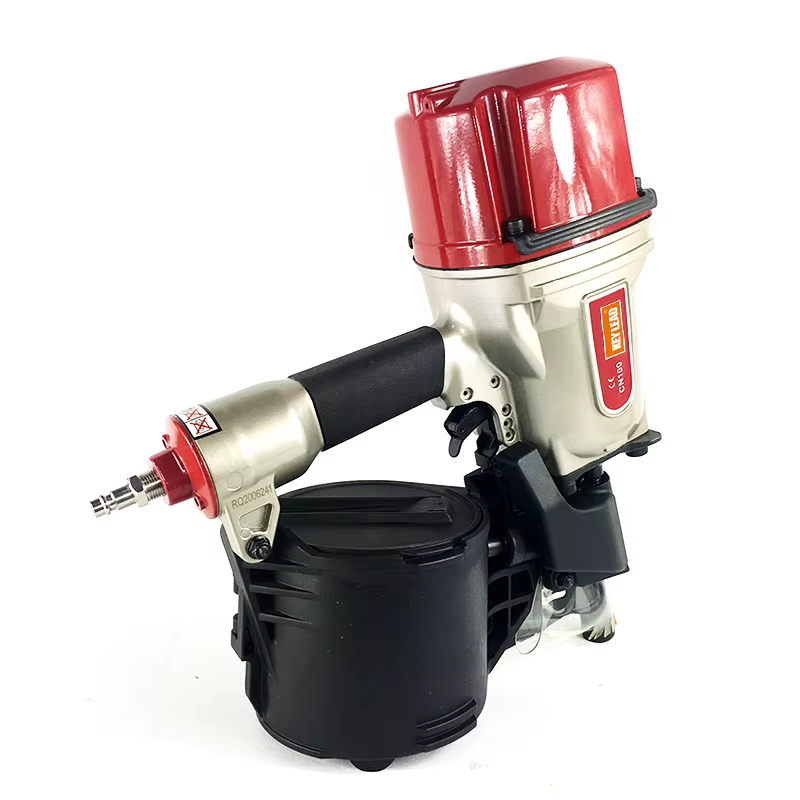

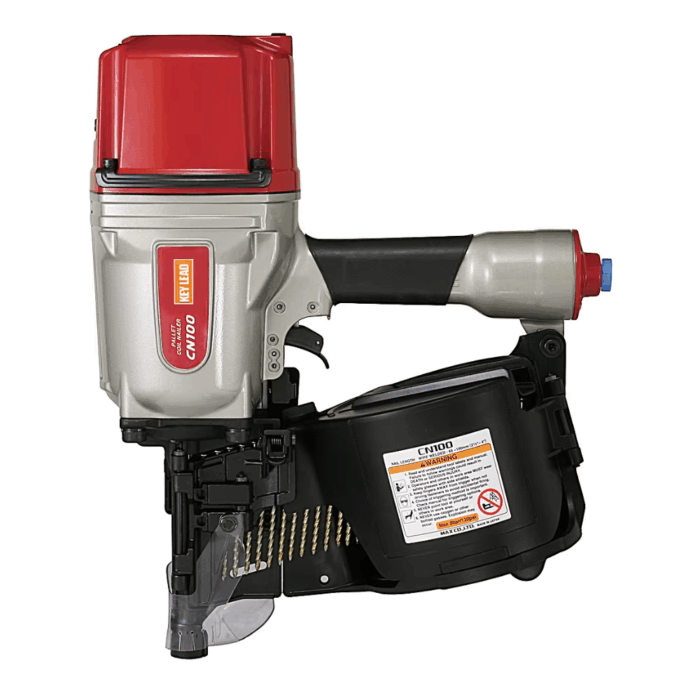

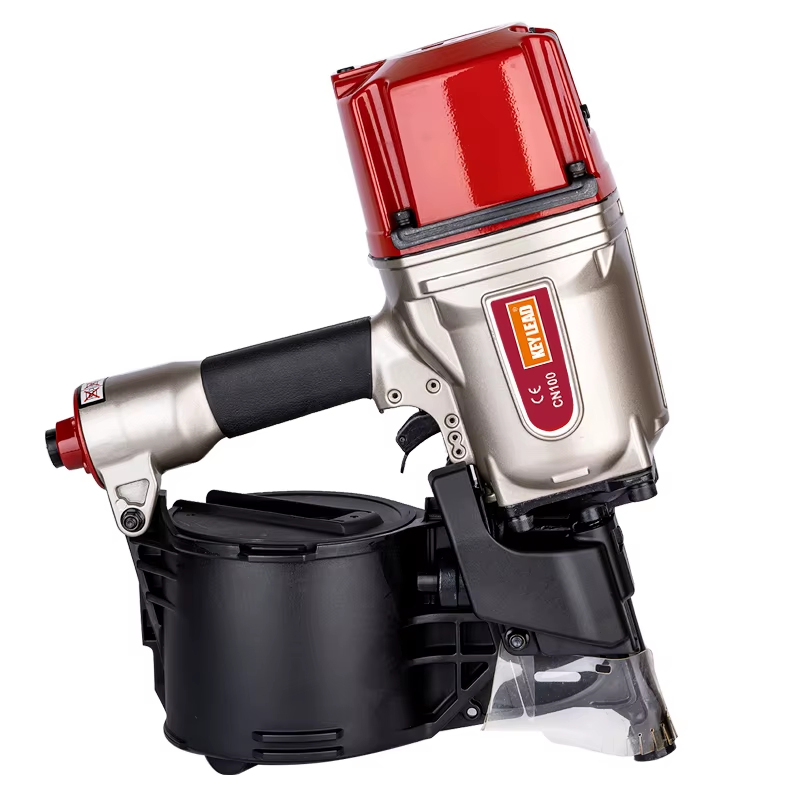

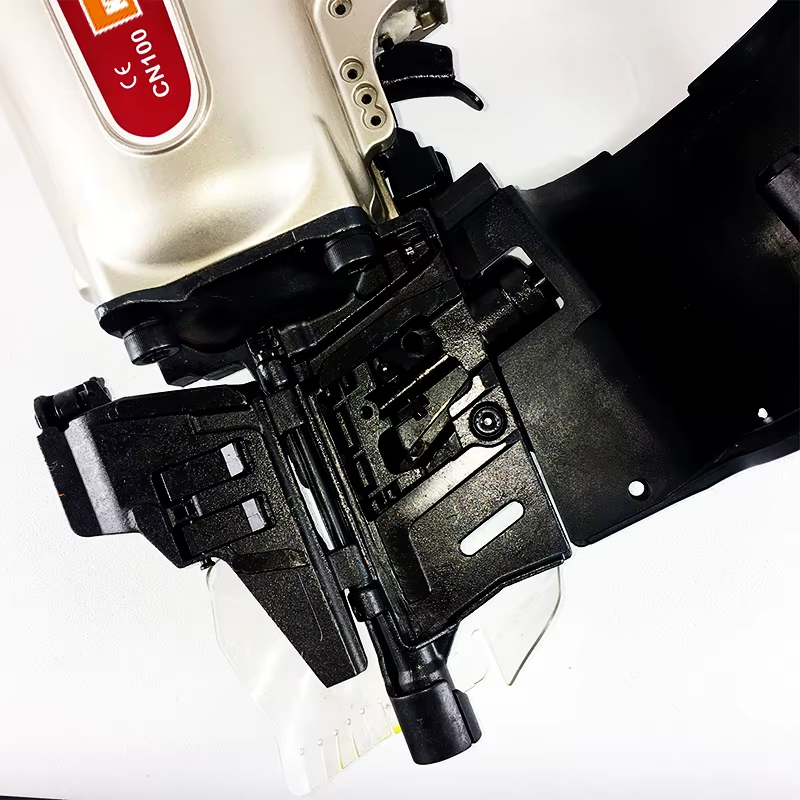

  • Item: CN100 Air Coil Nailer

  • Description: A powerful air coil nailer designed for various nailing applications.

  • Tool Weight: 5.3 kg

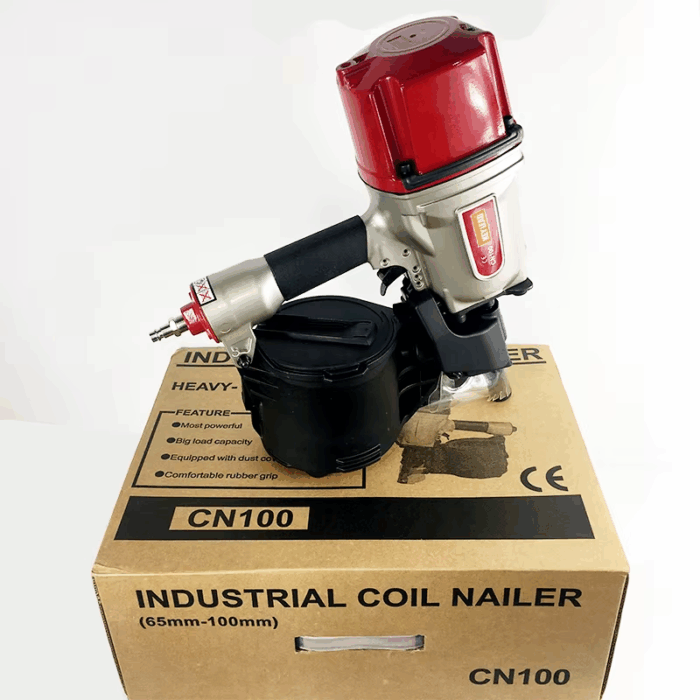

Packaging Details

  • Inner Box Packaging: Only Paper box

  • Box Size: 44cm x 36cm x 17cm

  • Pieces per Carton (Psc/ctn): 3

  • Carton Size: 62cm x 48cm x 42cm

  • Gross Weight per Carton (G.w/ctn): 21 kg

Pallet Details

  • Pallet Size: 110cm x 110cm x 220cm

  • Cartons per Pallet: 20

  • Tools per Pallet: 60
