Description

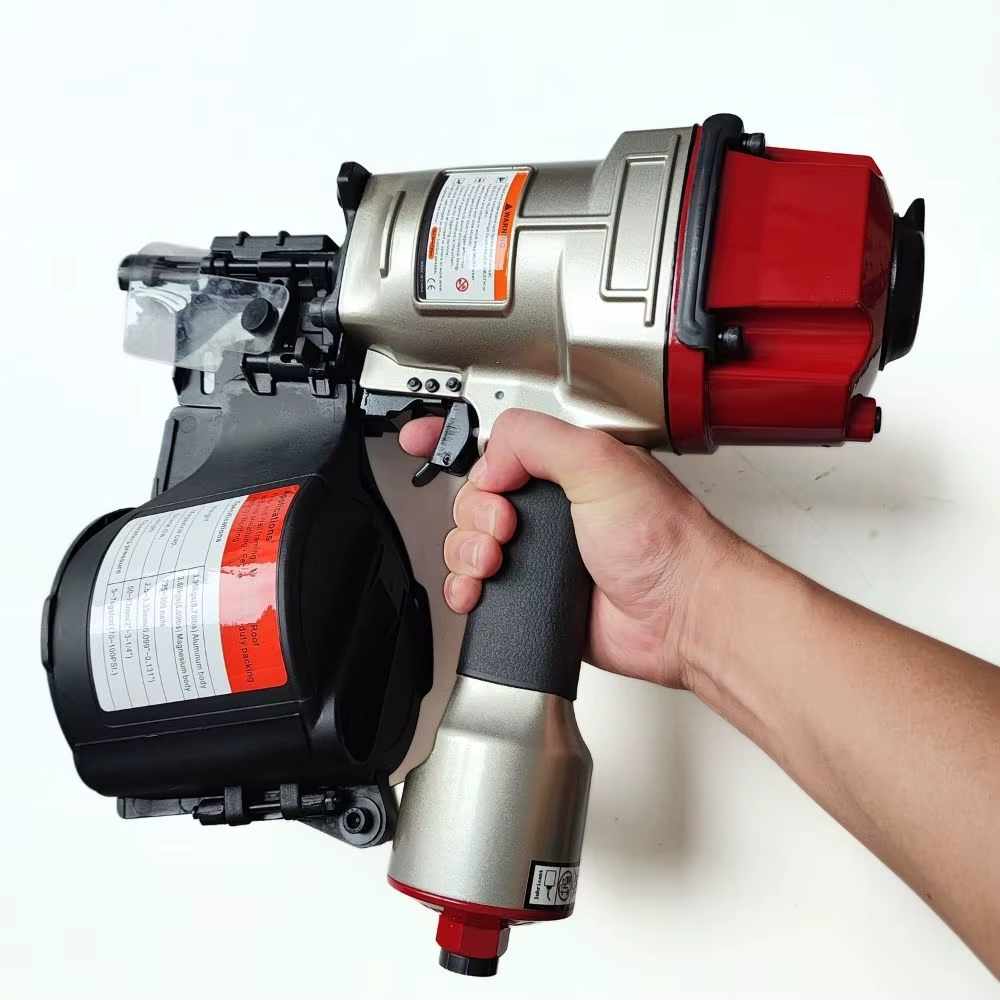

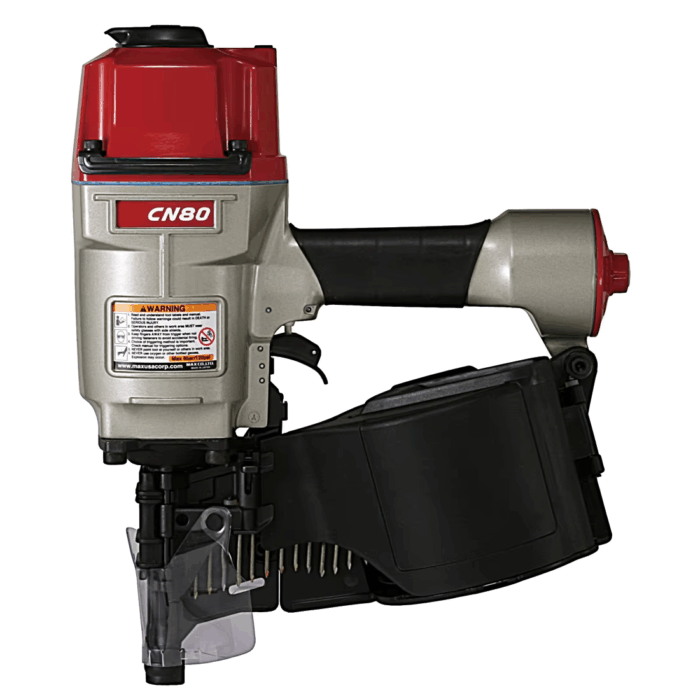

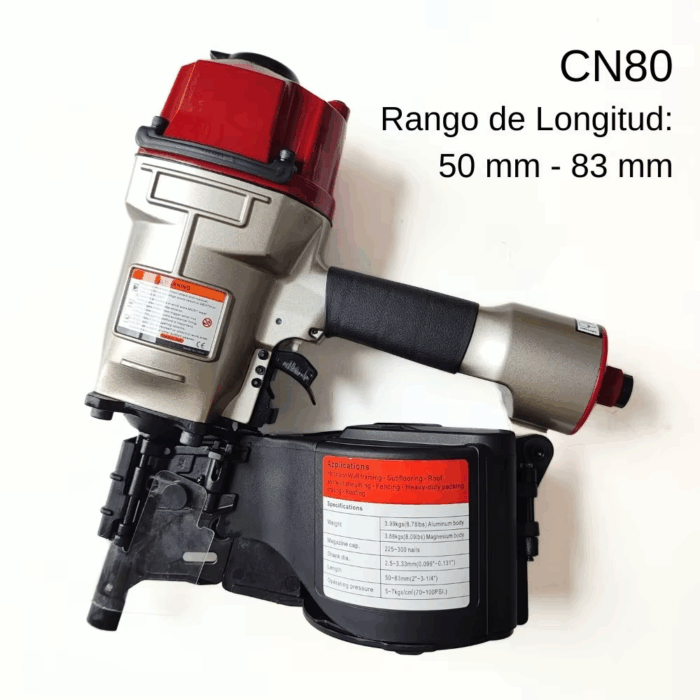

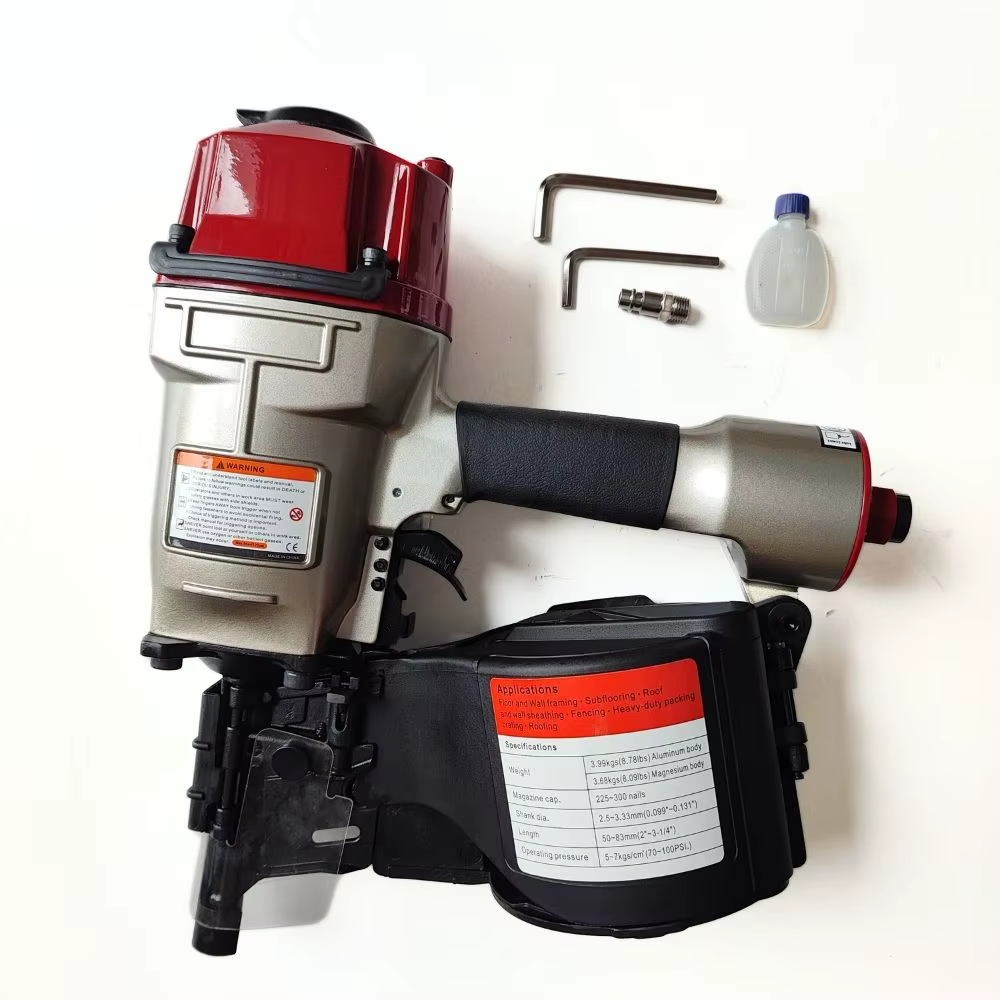

CN80 Heavy Duty Coil Nailer up to 3-1/4″

The MAX CN80 is a safety equipped, lightweight yet heavy duty professional grade industrial coil nailer. Its die cast aluminum construction contributes to its lightweight. The CN80 is best used for industrial applications such as making pallets, crating, packaging, fences, decking, sheathing, furring, and siding.

Note: Ships from overseas, delivered within 2 weeks.

Feel free to place your order by emailing us at quotes@jpfranklin.co.nz or call us at 0800456888 – we’d love to hear from you!



Applications

  • Pallets

  • Crating

  • Packaging

  • Sheathing

  • Furring

  • Fencing

    FEATURES

    • COMFORTABLE RUBBER GRIP
      Protects hands from friction with the tool and provides slip resistant handling.

    • LIGHTWEIGHT AND DURABLE
      Die cast aluminum construction for durability that’s built to last.

    • ERGONOMIC DESIGN
      Well-balanced design for ergonomic control.

    • PROTECT YOURSELF FROM TOOL EXHAUST
      Multi-directional exhaust cover allows users to divert exhaust air and fumes away from their face.

    • LARGE CAPACITY MAGAZINE
      Load up to 300 nails which means elimation of constant reloading and reduce fatigue while operating tool.

      SPECIFICATIONS

      WEIGHT
      8.2 lbs
      DIMENSIONS
      		 14 1/4″(H) x 4 3/16″(W) x 12 1/8″(L)
      MINIMUM OPERATION PRESSURE
      70 PSI
      MAXIMUM OPERATION PRESSURE
      120 PSI
      AIR INLET SIZE
      3/8″
      MAGAZINE CAPACITY
      300
      DEPTH CONTROL
      No
      JAM CLEARING
      No
      TRIGGER TYPE Rapid Fire Trigger
      AIR CONSUMPTION
      (FT3/CYCLE)
      0.06
COLLATION TYPE
Wire
NAIL GUN ANGLE
 15
STRIP OR COIL
Coil
COMPATIBLE FASTENER TYPES
Flat wire welded nails
MINIMUM FASTENER SIZE
2″
MAXIMUM FASTENER SIZE
3-1/4″
MINIMUM NAIL DIAMETER .099″
MAXIMUM NAIL DIAMETER
.131″
